- The Tape: Kevlar reinforced
polyethylene dog bone section with stainless steel conductors.
Graduated in feet x 100th/ft or meters x mm for durability and
- The Probe: 16 mm (5/8”)
diameter 19mm (7 ½”) long probe constructed from stainless steel and
Teflon (r). The probe has no holes or recesses to trap contaminants
and is water tight to the full depth of the tape.
- The Electronics: Fully
encapsulated circuitry for protection against dirt and moisture.
Single easy change 9 V battery accessible from the panel. Signal by
audible buzzer and extra bright LED Light
- REEL: A tough nylon or
aluminium ( depending on tape length) reel mounted on a sturdy
powder coated steel frame. A soft vinyl hand grip, ergonomic, reel
Lock and casing hangar are incorporated into the frame.

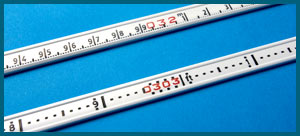

|Polyethylene dogbone section tape
